深入解析:基于Spring Boot的豆瓣电影海报爬虫实现

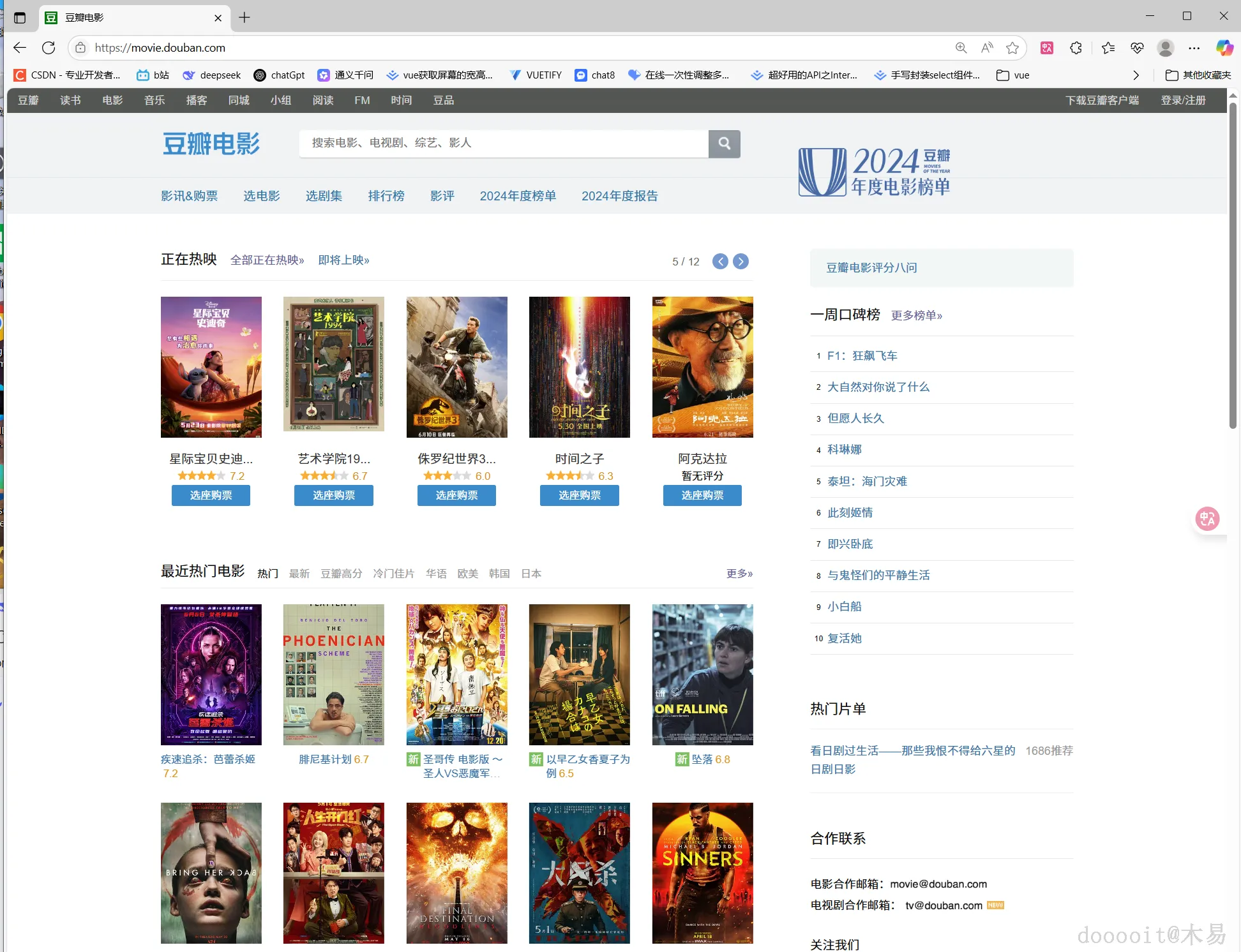

在本教程中,我们将深入解析如何基于 Spring Boot 框架实现豆瓣电影海报的爬取与展示。为了满足页面展示需求,我们需要获取最新影片的封面海报及其相关信息。通过本教程的学习,你将掌握如何结合爬虫技术与 Spring Boot 后端开发,构建一个完整的电影信息抓取与展示系统,涵盖数据爬取、处理、存储的全流程。
2
初始化变量




12
@Component
public class TaskUtil {
@Resource
MovieService movieService; // 数据库服务层注入

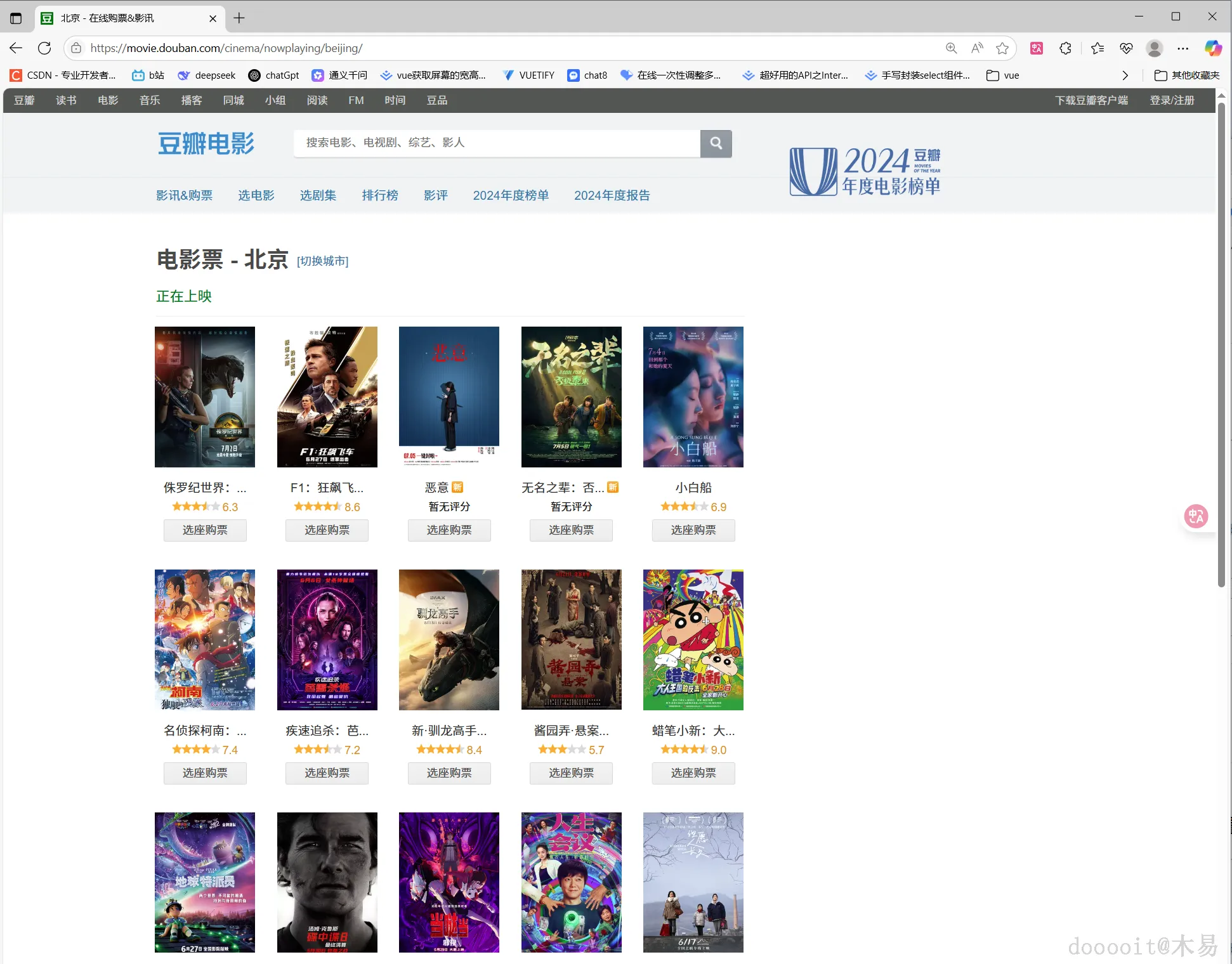

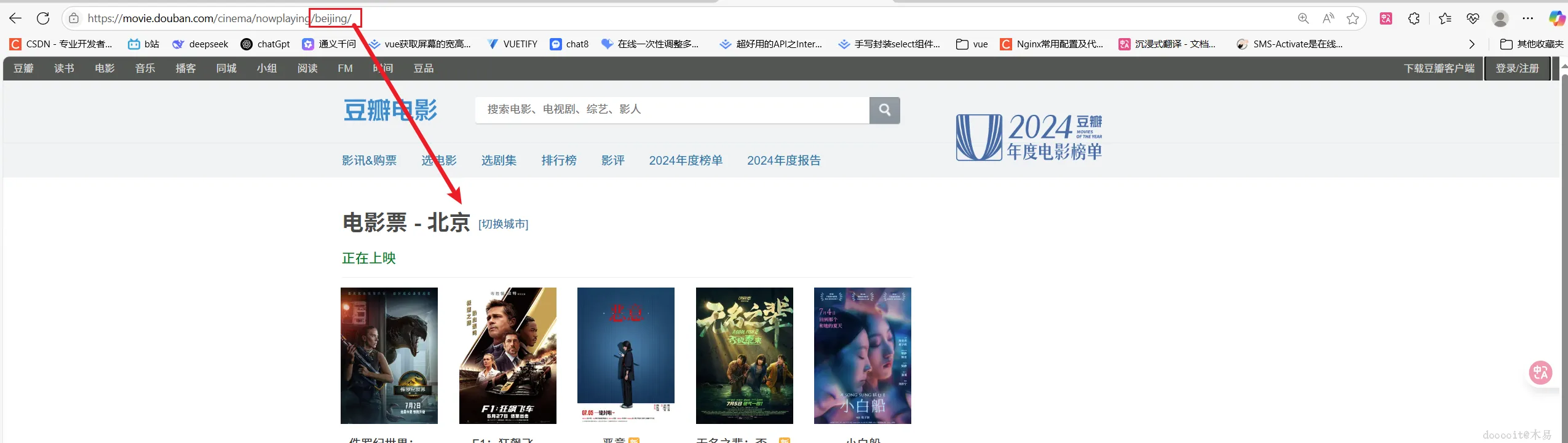

// 配置爬取页面URL地 /nowplaying/要爬取的城市名称/
private static final String DOUBAN_MOVIE_URL =
"https://movie.douban.com/cinema/nowplaying/beijing/";
// 用于模拟浏览器身份标识
private static final String USER_AGENT =
"Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:71.0) Gecko/20100101 Firefox/71.0";
// 存储HTTP请求中Accept头部的信息,客户端期望从服务器获取的内容类型及其优先级
private static final String ACCEPT_HEADER =
"text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8";
// 模拟浏览器Cookie
private static final String COOKIE = "ll=\"108288\"; bid=bUEPKsO4-L4; ...";
// 本地图片存储路
private static final String filePath = "haibao/";
// 图片访问域名
private static final String fileHost = "http://localhost:8080/api/";
}

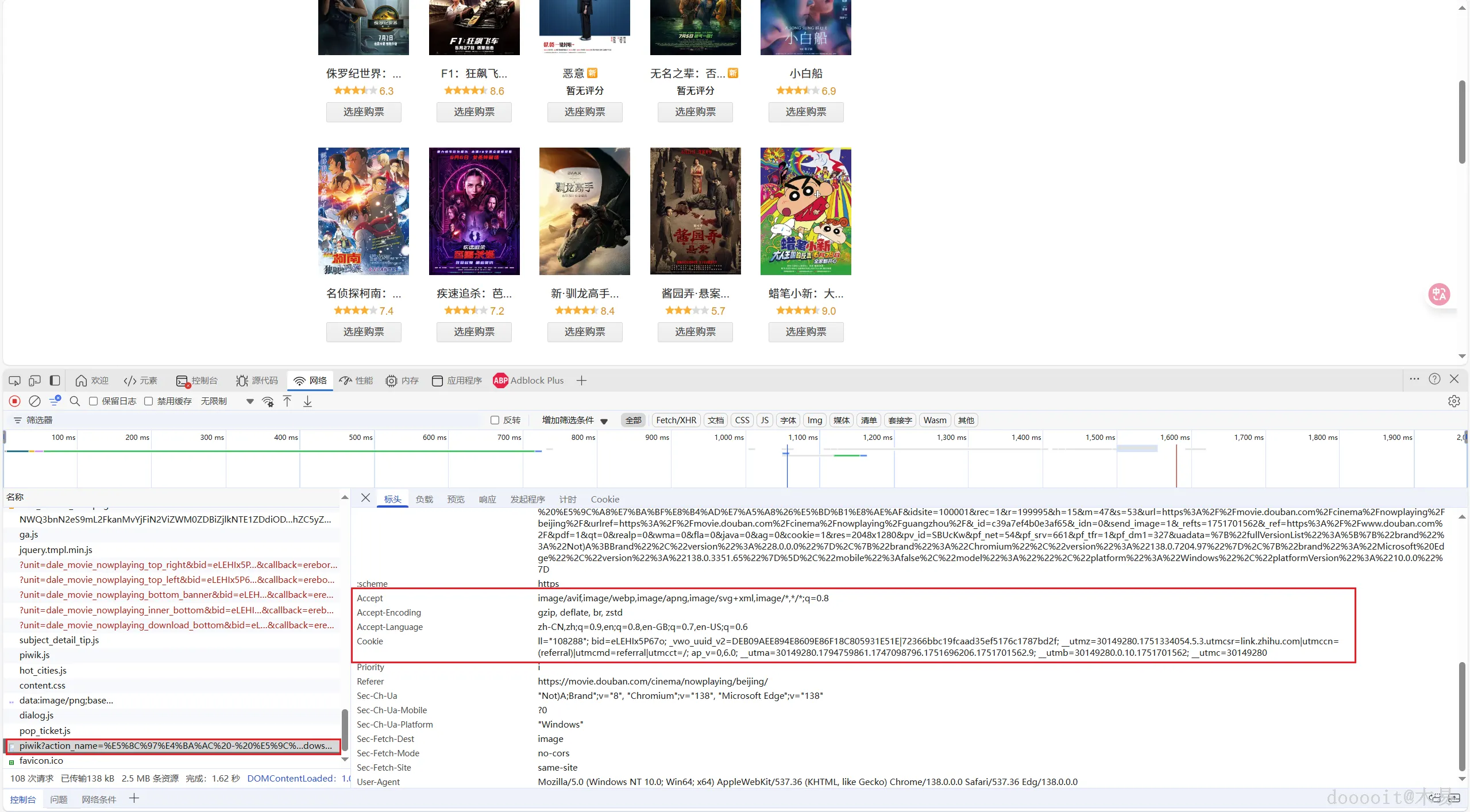

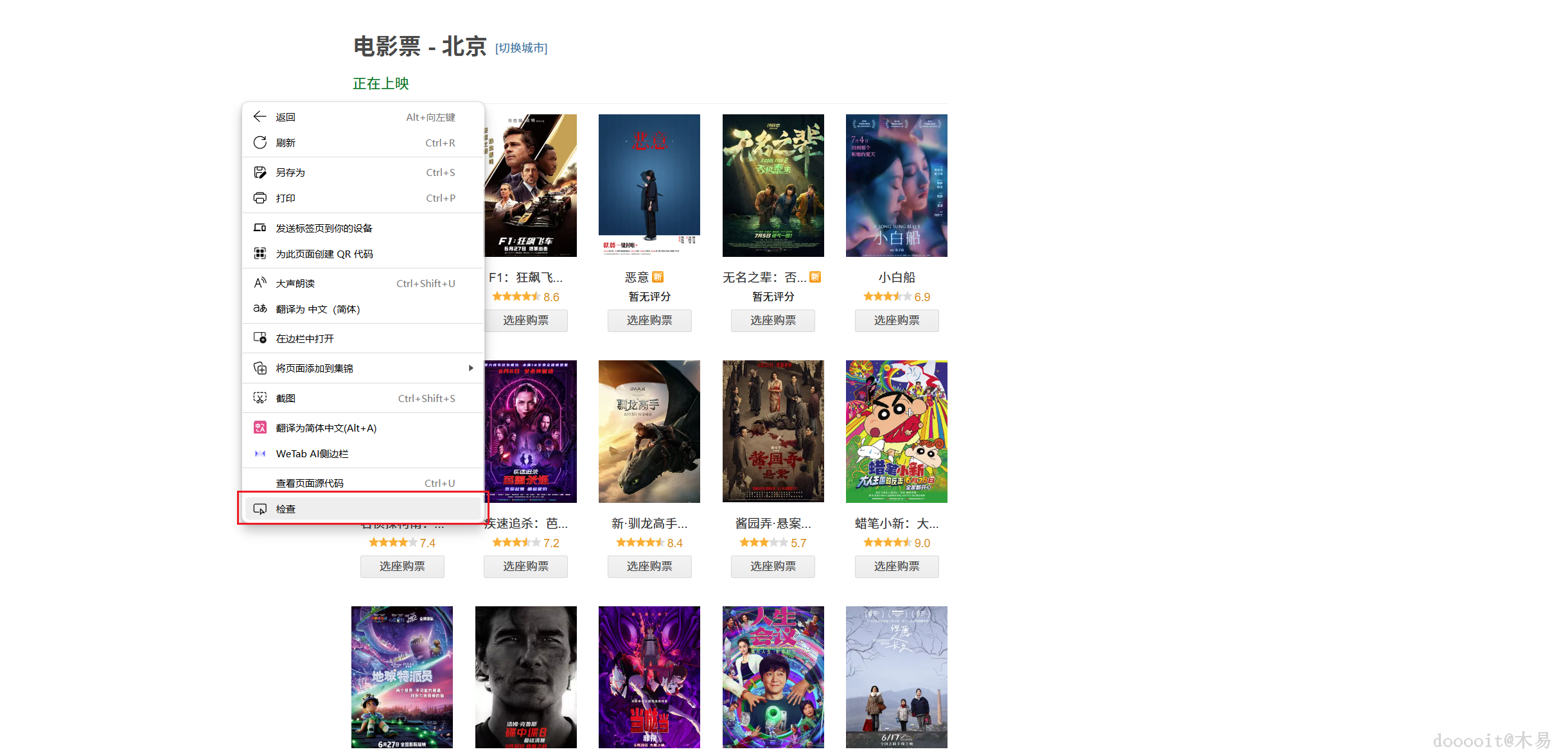

获取 Cookie、User-Agent 和 Accept-Header 的方式如下:
- 打开浏览器,进入目标网页(如豆瓣电影页面)。
- 右键点击空白区域,选择“检查”打开开发者工具。
- 切换到 Network(网络) 标签,并设置筛选条件为 All(全部)。
- 刷新页面,找到任意一个 HTTP 请求。
- 点击该请求,在 Headers(标头) 选项中可以查看以下信息:
- User-Agent:浏览器标识信息。
- Accept:客户端接受的数据类型。
- Cookie:用于维持会话状态的信息。
这些参数可用于模拟浏览器请求,绕过反爬虫机制。
filePath和fileHost:
filePath
:图片在本地文件系统的存储目录,值为"haibao/"
,表示所有下载的图片将保存在此目录下。fileHost
:图片在网络上可访问的基础URL,值为"http://localhost:8080/api/"
,用于提供图片的在线访问链接。
Maven 依赖配置(pom.xml)
在项目 pom.xml
文件中添加以下依赖项,以便支持 HTTP 请求和 HTML 解析功能:
xml
深色版本
<!-- Apache HttpClient 5.x,用于发起HTTP请求 -->
<dependency>
<groupId>org.apache.httpcomponents.client5</groupId>
<artifactId>httpclient5</artifactId>
<version>5.2.1</version>
</dependency>
<!-- Jsoup,用于解析HTML文档 -->
<dependency>
<groupId>org.jsoup</groupId>
<artifactId>jsoup</artifactId>
<version>1.11.3</version>
</dependency>
3

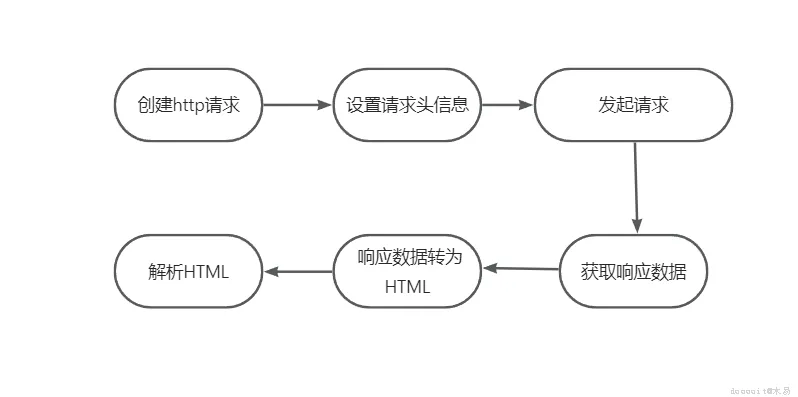

HTTP请求与反爬策略(详细实现)

try (CloseableHttpClient httpClient = HttpClients.createDefault()) {
HttpGet httpGet = new HttpGet(DOUBAN_MOVIE_URL);
// 设置请求头伪装浏览器
httpGet.setHeader("Accept", ACCEPT_HEADER);
httpGet.setHeader("User-Agent", USER_AGENT);
httpGet.setHeader("Cookie", COOKIE);
try (CloseableHttpResponse response = httpClient.execute(httpGet)) {
// 获取HTML内容
String htmlContent = EntityUtils.toString(response.getEntity());
// 进入解析流程
parseAndSaveMovies(htmlContent);
} catch (Exception e) {
throw new RuntimeException(e);
}
}
User-Agent
模拟Firefox浏览器- Cookie携带用户会话信息(如
bid
身份标识) - 使用
try-with-resources
确保HTTP连接自动关闭
4
HTML解析与数据提取




12

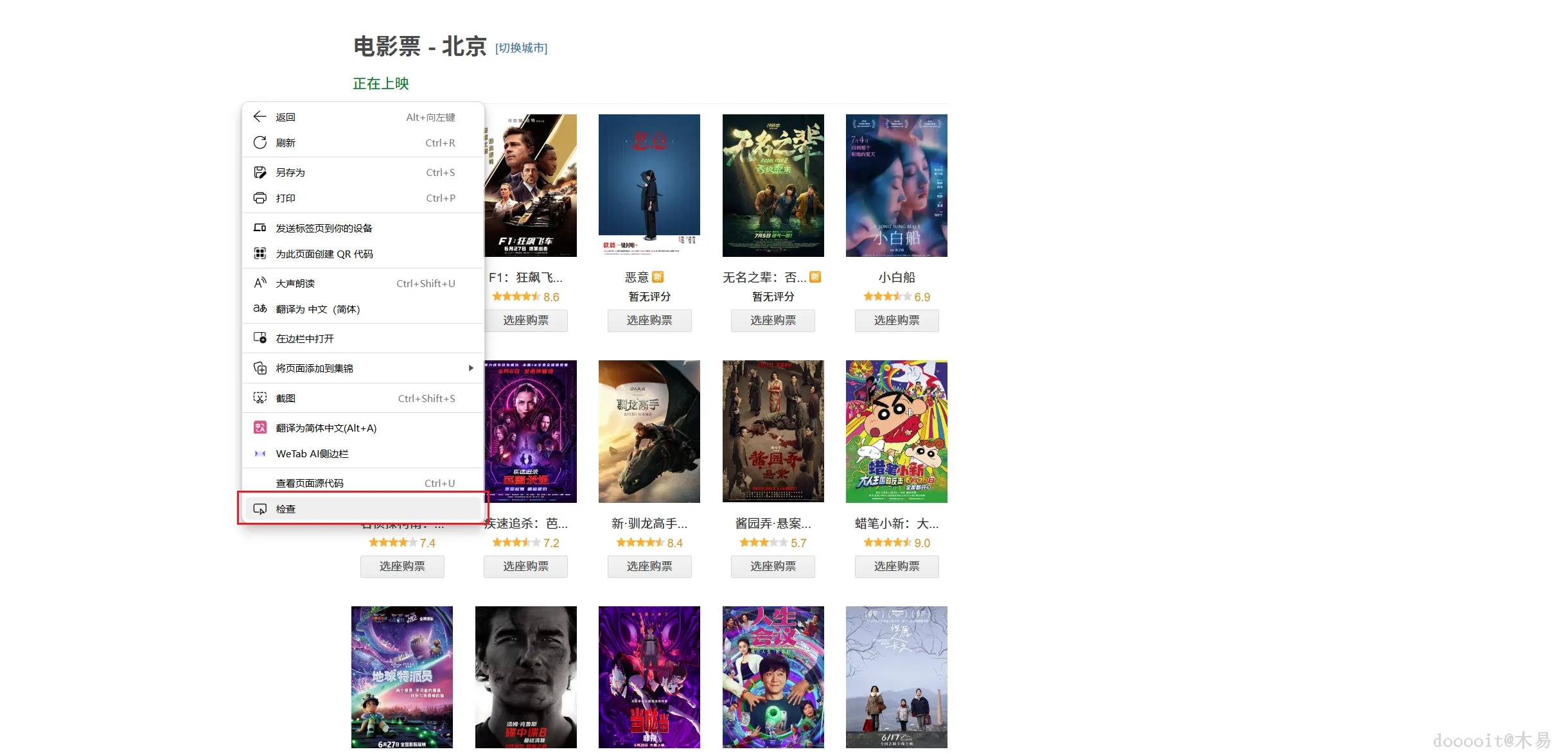

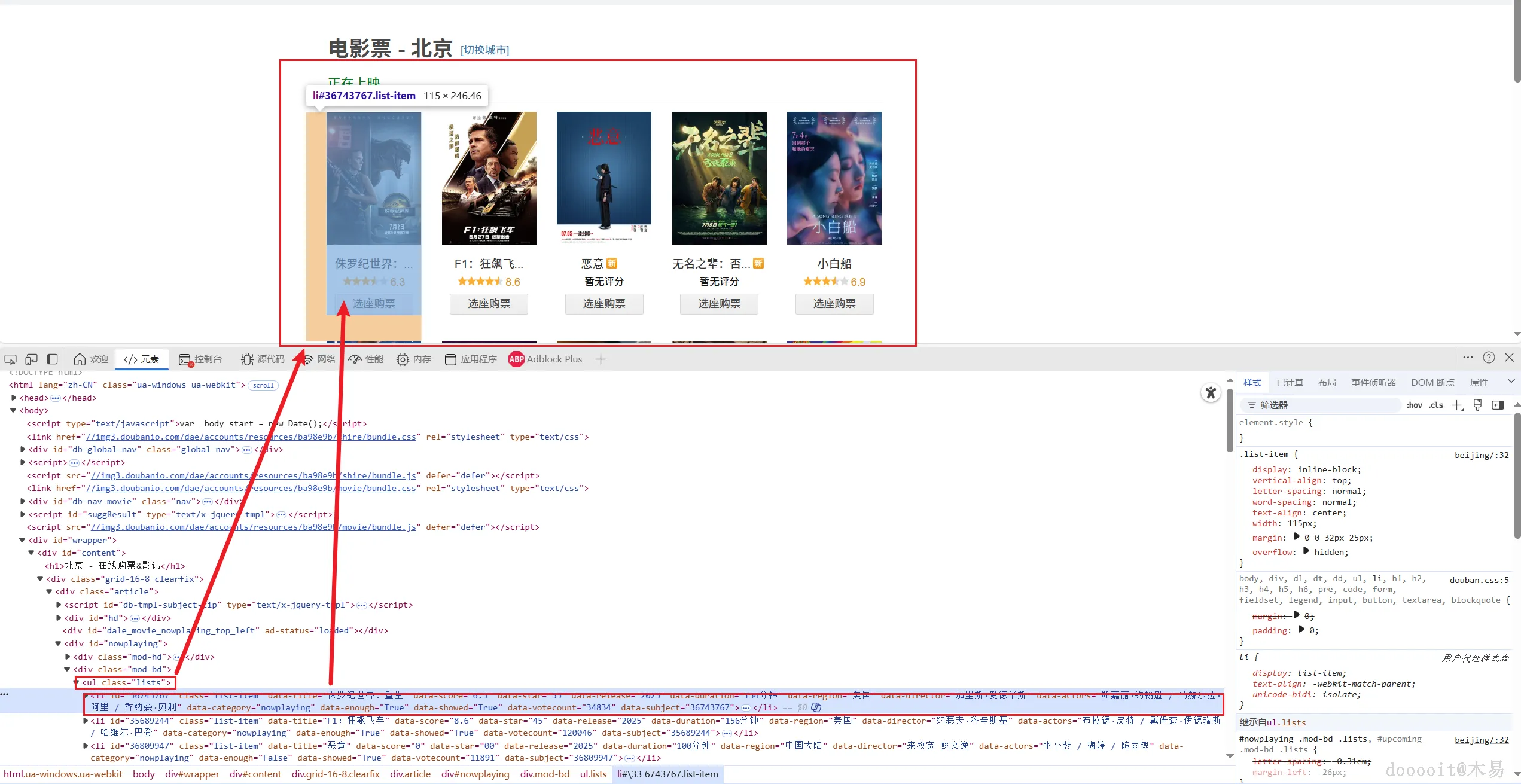

在页面空白处点击鼠标右键,选择“检查”以打开开发者工具。随后可以找到我们所需爬取内容对应的页面元素,查看其 class
或 id
等标识信息。接着,我们可以通过其中一个标识来获取该部分页面的 HTML 内容,并使用 Jsoup 将其解析为文档对象模型(DOM),以便进行后续的数据提取和处理。
private void parseAndSaveMovies(String htmlContent) throws Exception {
Document doc = Jsoup.parse(htmlContent);
Elements liList = doc.select("li.list-item"); // 定位电影列表项
for (int i = 0; i < liList.size(); i++) {
Element li = liList.get(i);
// 提取关键数据
String region = li.attr("data-region"); // 地区
String releaseDate = li.attr("data-release"); // 上映时间
String name = li.select("img").attr("alt"); // 电影名称
String posterUrl = li.select("img").attr("src"); // 海报URL
String ticketUrl = li.select("a").attr("href"); // 购票链接
// 下载并存储海报
String savedPath = saveImage(posterUrl, fileHost, filePath);
// 构建Movie对象
Movie movie = new Movie();
movie.setDiqu(region);
movie.setShangyingshijian(releaseDate);
movie.setMingcheng(name);
movie.setHaibao(savedPath); // 存储网络可访问路径
movie.setGoupiaodizhi(ticketUrl);
movieService.insertMovie(movie); // 持久化到数据库
}
}
- CSS选择器定位:
li.list-item
精准捕获列表元素 - 属性提取:从
data-*
属性获取结构化数据 - 相对路径转绝对URL:
saveImage()
处理图片下载与路径映射
Jsoup 的主要用途包括:
用途 | 描述 |
HTML解析 | 将原始HTML字符串转为可操作的文档对象模型(DOM)结构 |
数据提取(爬虫) | 使用选择器(类似css)快速提取特定标签、属性或文本内容 |
HTML清理 | 过滤 HTML 中的不安全内容,防止 XSS 攻击(适合富文本编辑器输入) |
HTML操作 | 修改、添加或删除HTML节点,生成新的HTML内容 |
网络请求 | 提供简单的http请求功能(get/post),模拟浏览器访问网页 |
5

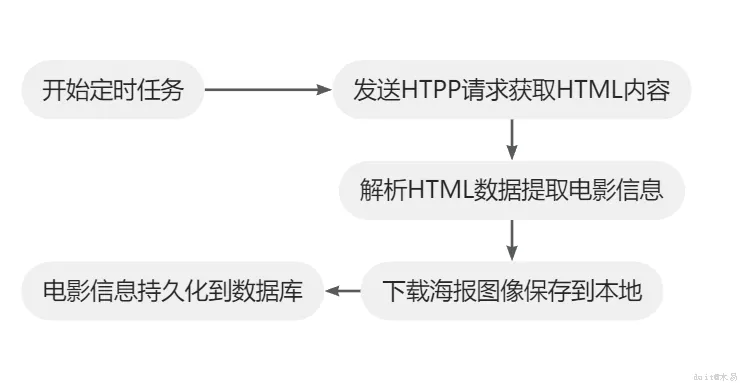

完整代码

package com.example.task;
import com.example.entity.Movie;
import com.example.service.MovieService;
import org.apache.hc.client5.http.classic.methods.HttpGet;
import org.apache.hc.client5.http.impl.classic.CloseableHttpClient;
import org.apache.hc.client5.http.impl.classic.CloseableHttpResponse;
import org.apache.hc.client5.http.impl.classic.HttpClients;
import org.apache.hc.core5.http.ParseException;
import org.apache.hc.core5.http.io.entity.EntityUtils;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.select.Elements;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.io.*;
import java.net.HttpURLConnection;
import java.net.URL;
import java.nio.file.*;
import java.nio.file.attribute.BasicFileAttributes;
import java.util.concurrent.TimeUnit;
@Component
public class TaskUtil {
@Resource
MovieService movieService;
// 配置爬取页面URL地址 /nowplaying/要爬取的城市名称/
private static final String DOUBAN_MOVIE_URL =
"https://movie.douban.com/cinema/nowplaying/beijing/";
// 用于模拟浏览器身份标识
private static final String USER_AGENT =
"Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:71.0) Gecko/20100101 Firefox/71.0";
// 存储HTTP请求中Accept头部的信息,客户端期望从服务器获取的内容类型及其优先级
private static final String ACCEPT_HEADER =
"text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8";
// 模拟浏览器Cookie
private static final String COOKIE = "ll=\"108288\"; bid=bUEPKsO4-L4; ...";
// 本地图片存储路
private static final String filePath = "haibao/";
// 图片访问域名
private static final String fileHost = "http://localhost:8080/api/";
// 每六小时运行一次
@Scheduled(cron = "0 0 0/6 * * ?")
public void getDianYingHaiBao() throws IOException, ParseException {
System.out.println("开始定时任务");
Path targetPath = Paths.get(System.getProperty("user.dir") + "\\"+filePath);
// 增加权限检查
if (!Files.isWritable(targetPath)) {
targetPath.toFile().setWritable(true);
}
deleteDirectoryWithRetry(targetPath);
movieService.deleteAllMovie();
try (CloseableHttpClient httpClient = HttpClients.createDefault()) {
HttpGet httpGet = new HttpGet(DOUBAN_MOVIE_URL);
// 设置请求头伪装浏览器
httpGet.setHeader("Accept", ACCEPT_HEADER);
httpGet.setHeader("User-Agent", USER_AGENT);
httpGet.setHeader("Cookie", COOKIE);
try (CloseableHttpResponse response = httpClient.execute(httpGet)) {
// 获取HTML内容
String htmlContent = EntityUtils.toString(response.getEntity());
// 进入解析流程
parseAndSaveMovies(htmlContent);
} catch (Exception e) {
throw new RuntimeException(e);
}
}
System.out.println("结束定时任务");
}
/**
* 删除文件
* @param path 文件路径
* @throws IOException
*/
public void deleteDirectoryWithRetry(Path path) throws IOException {
// 递归删除增强版
Files.walkFileTree(path, new SimpleFileVisitor<Path>() {
@Override
public FileVisitResult visitFile(Path file, BasicFileAttributes attrs)
throws IOException {
deleteWithRetry(file); // 删除文件
return FileVisitResult.CONTINUE;
}
@Override
public FileVisitResult postVisitDirectory(Path dir, IOException exc)
throws IOException {
deleteWithRetry(dir); // 删除目录
return FileVisitResult.CONTINUE;
}
private void deleteWithRetry(Path path) throws IOException {
int retryCount = 0;
final int MAX_RETRY = 3;
while (retryCount < MAX_RETRY) {
try {
// 处理 Windows 文件属性
if (Files.exists(path)) {
// 清除只读属性
if (path.toFile().exists()) {
path.toFile().setWritable(true);
}
Files.delete(path);
}
return;
} catch (AccessDeniedException ex) {
// 处理文件锁定
retryCount++;
try {
TimeUnit.MILLISECONDS.sleep(300 * retryCount);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
throw new IOException("删除操作被中断", e);
}
} catch (IOException ex) {
if (retryCount == MAX_RETRY - 1) {
throw new IOException("无法删除: " + path + " (重试次数超限)", ex);
}
retryCount++;
}
}
}
});
}
private void parseAndSaveMovies(String htmlContent) throws Exception {
Document doc = Jsoup.parse(htmlContent);
Elements liList = doc.select("li.list-item"); // 定位电影列表项
for (int i = 0; i < liList.size(); i++) {
Element li = liList.get(i);
// 提取关键数据
String region = li.attr("data-region"); // 地区
String releaseDate = li.attr("data-release"); // 上映时间
String name = li.select("img").attr("alt"); // 电影名称
String posterUrl = li.select("img").attr("src"); // 海报URL
String ticketUrl = li.select("a").attr("href"); // 购票链接
// 下载并存储海报
String savedPath = saveImage(posterUrl, fileHost, filePath);
// 构建Movie对象
Movie movie = new Movie();
movie.setDiqu(region);
movie.setShangyingshijian(releaseDate);
movie.setMingcheng(name);
movie.setHaibao(savedPath); // 存储网络可访问路径
movie.setGoupiaodizhi(ticketUrl);
movieService.insertMovie(movie); // 持久化到数据库
}
}
/**
* 保存图片到本地
* @param urlPath 图片路径
* @param fileHost 访问图片端口
* @param filePath 图片存储路径
* @return 访问图片的完整路径
*/
public String saveImage(String urlPath,String fileHost,String filePath) throws Exception{
//定义一个URL对象,就是你想下载的图片的URL地址
URL url = new URL(urlPath);
//打开连接
HttpURLConnection conn = (HttpURLConnection) url.openConnection();
// 设置关键请求头
conn.setRequestProperty("User-Agent", "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36");
conn.setRequestProperty("Accept", "image/webp,image/apng,image/*,*/*;q=0.9");
conn.setRequestProperty("Accept-Language", "zh-CN,zh;q=0.9");
//设置请求方式为"GET"
conn.setRequestMethod("GET");
//超时响应时间为10秒
conn.setConnectTimeout(10 * 1000);
//通过输入流获取图片数据
InputStream is = conn.getInputStream();
//得到图片的二进制数据,以二进制封装得到数据,具有通用性
byte[] data = readInputStream(is);
//创建一个文件对象用来保存图片,默认保存当前工程根目录,起名叫Copy.jpg
File dir = new File("haibao");
if (!dir.exists()) {
dir.mkdirs();
}
File file=new File(filePath+System.currentTimeMillis()+".jpg");
//创建输出流
FileOutputStream outStream = new FileOutputStream(file.getPath());
//写入数据
outStream.write(data);
//关闭输出流,释放资源
outStream.close();
return fileHost+filePath+file.getName();
}
public byte[] readInputStream(InputStream inStream) throws Exception {
ByteArrayOutputStream outStream = new ByteArrayOutputStream();
//创建一个Buffer字符串
byte[] buffer = new byte[6024];
//每次读取的字符串长度,如果为-1,代表全部读取完毕
int len;
//使用一个输入流从buffer里把数据读取出来
while ((len = inStream.read(buffer)) != -1) {
//用输出流往buffer里写入数据,中间参数代表从哪个位置开始读,len代表读取的长度
outStream.write(buffer, 0, len);
}
//关闭输入流
inStream.close();
//把outStream里的数据写入内存
return outStream.toByteArray();
}
}
